WW JET 50 PUMP

WIN-WIN JET 50 Pump Uses Superior Intensifier Technology For Proven Performance To Provide Users With A Durable, Reliable Water Jet Pump.

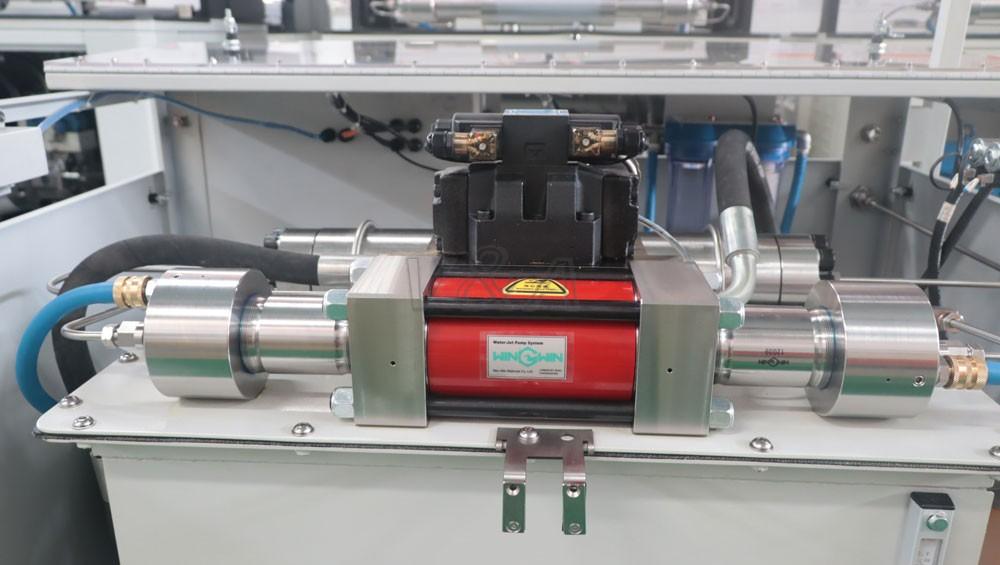

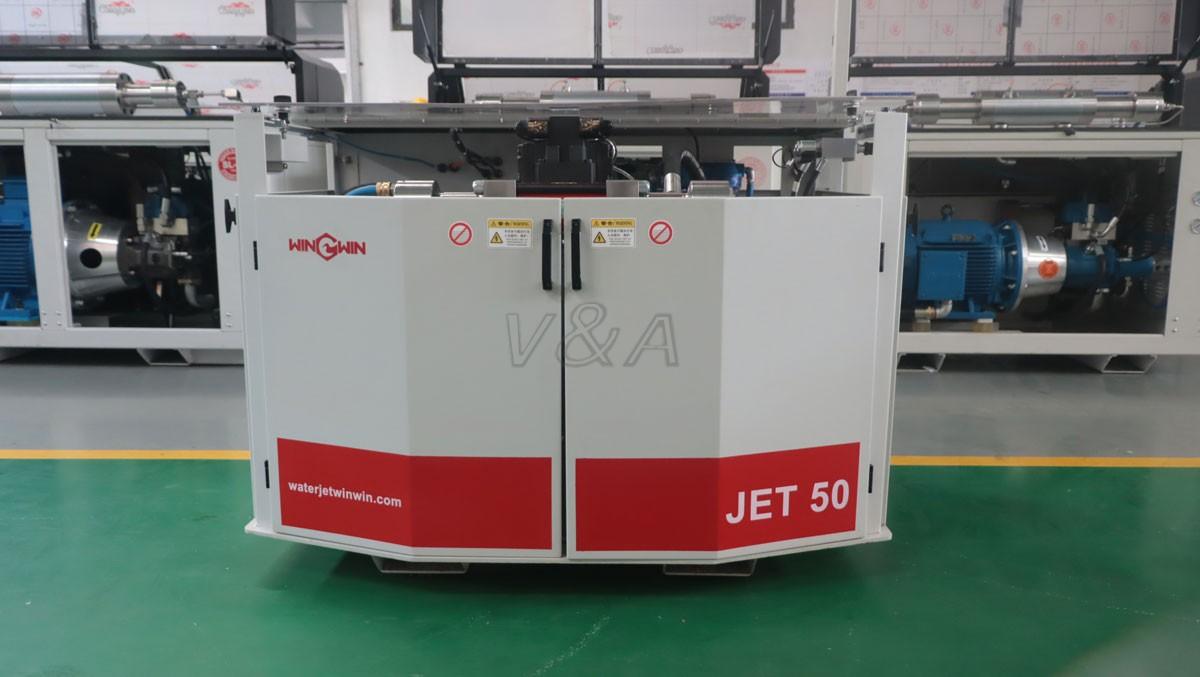

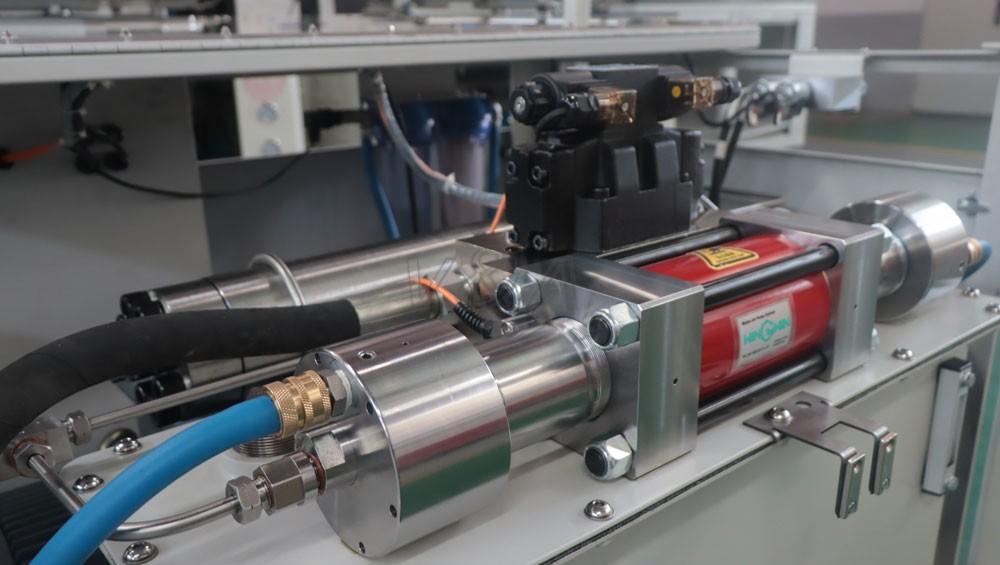

WW JET 50 Intensifier Pump

WIN-WIN JET 50 pump uses superior intensifier technology for proven performance to provide users with a durable, reliable water jet pump. It also features the all new, low profile cabinetry design for easy access to pump controls and components along with 60,000psi operating pressure to cut steel, aluminum, stone, and much more.

JET 50 High-pressure pump is a low-cost, high-efficiency new choice of waterjet cutting applications. It is adhering to the new, minimalist design, iseasyto control and use. Under the pressure of 60,000psi, it’s easy to cut steel, aluminum, stone and other materials. The compact pump design makes it easy to replace seals and to provide up to 60,000psi high-pressure cutting at any location needed.

Nominal Power Rate

50hp (37 kW)

Control Voltage & Power Supply

24V DC; 5 Amps DC

Max. Continuous Pressure

Max. Continuous Pressure

Max. Noise Level

75 dB (A)

Max. Water Flow Rate

1.0 gpm (3.8 L/min)

Ambient Operating Temperature

Min. 40ºF (5º C), Max. 104ºF(40º C)

Max. Single Orifice Dia.

.014 in. (0.36 mm)

Hydraulic Reservoir Capacity

114 L

Length

1600mm



Attenuator Volume

1L

Width

1200mm

Weight

0.9t

Height

1100mm




Features Of JET 50 WATERJET PUMP

• PLC Based Controls
• Basic Control for Pump On/Off, E-Stop
• Hydraulic Shift
• Manual Cooling Water Valve (Oil/Water Heat Exchanger)
• Remote Start/Stop, E-Stop, Hi/Low Panel
• Booster Pump w/10 Micron Filter and Pressure Gauge
• Return Line Oil Filter with Service Indicator
• Dual Pressure Compensator Included
• Low Inlet Water Pressure Safety Switch (30psi)
• 60,000 psi Design Pressure



•Variable Displacement Axial Piston Pump
• Continuous Recirculation Pump for Cooling System
• Manual Pressure Control
• Hi-Temp/Low Level Oil Safety Switch
• Oil/Water Heat Exchanger
• Auto Bleed Down Valve
• Rugged Powder-Coated Finish
• Vibration Isolation Pads on Motor
• Oil Temperature/Level Sight Gauge
• Electrical Junction Box
• 3 Phase Motor
