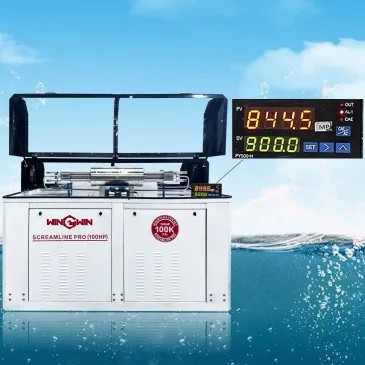

SL-VI 100HP PUMP

3D touch screen, observing dynamic condition of intensifier at any time, Much less maintenance-cost offered by Intensifier Designing, Much less Spare parts replacement and less noise during operation, Noise-Reduction Design, to create a better environment.



Servo motor

The servo motor is used as the driving mode to save 35% of the electricity cost.

Noise ≤ 63 DB

SL-VI 100hp intensifier pump can provide a good working environment.

Precise Pressure Control

Servo motor with independent variable pump, 2L large capacity accumulator, working pressure fluctuation less than 5MPa.

It Can Drive Six cutting heads

Large flow SL-VI 100hp intensifier pump, with a flow rate of 7.6l/min, can drive 6 cutting heads at the same time

Automatic Monitoring System

SL-VI 100hp is equipped with automatic monitoring system, which can detect pressure, speed, oil temperature, water inlet pressure, etc.



Brand

WINWIN

Model

SL-VI (100HP)

Name

Water jet servo motor intensifier pump


Temperature

5-40°C

Working pressure


420Mpa

Driving mode


Servo motor

Material

Material

Application

Water jet cutting system


Voltage

380V

Rated power

100HP

Attenuator capacity

2L

Continuous working pressure

320Mpa-380Mpa

Maximum water flow

7.6L/min

Number of orifices

6-7

Tank volume

150L

Size (L * w * h)

2.2m*1.4m*1.6m

Weight

1.5T



WINWIN ® SL-VI 60,000psi/100hp

WINWIN SL-VI(100HP) Series utilizes the latest technology and an innovative configurable design for ease of use, reliability and convenience—the result is a system that delivers the highest efficiency and profit

Dual Intensifier Pump Design (Optional)

Alternating Work from one to another, continuously work 24/7 and no down time. It is more prolific and efficient than traditional single intensifier.Stable working pressure, fast reaction, low fluctuation of waterjet cutting pressure.


Efficient Servo Motor


3D Touch Screen


Variable Pump


Water filtration system
