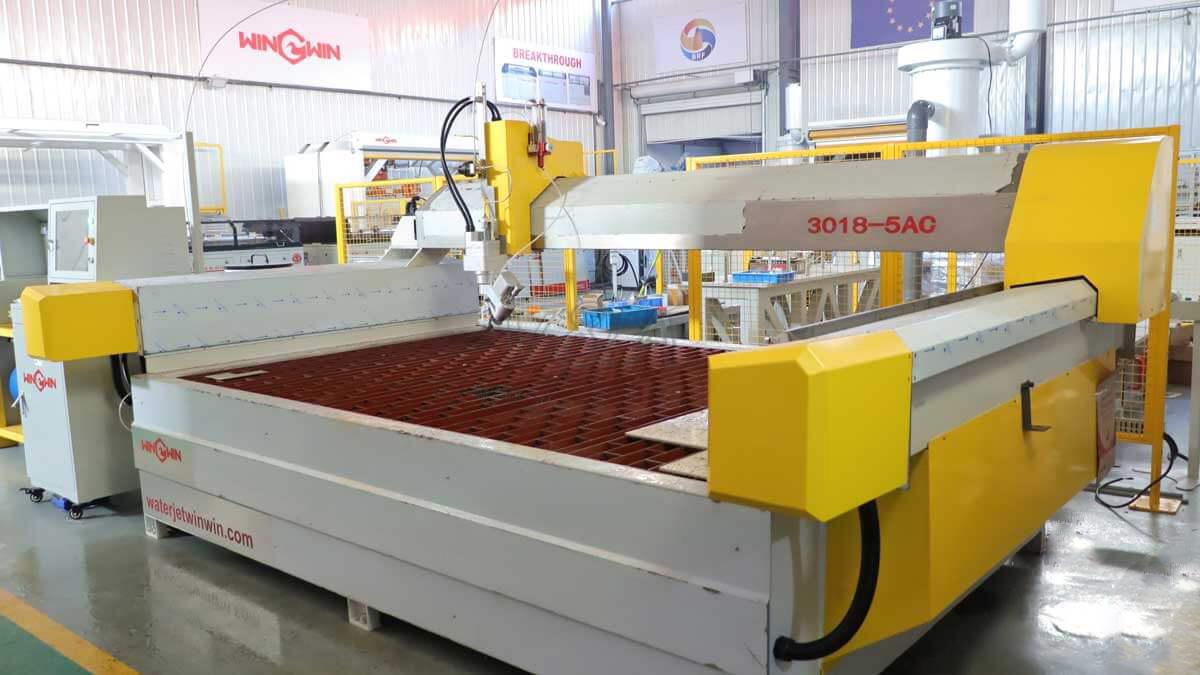

3018 AC 5 Axis Water Jet Cutting Machine

The size of this waterjet cutting table is 3000mmx1800mm. It is much smaller than regular waterjet cutting system. That means it can occupay small space and it’s easy to install. 2515 waterjet cutting machine is equipped AC 5 axis cutting head which can cut many material in different angles.

The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

Series	AC-3018 Water Jet	Type	Gantry Type
Cutting Angle	0-±68 Degrees	Control Accurcy	±0.01mm
Table Size	4000mmx2000mmx200mm	Travel Of Z Axis	200mm
Cutting Precision	±0.1mm	RE-Positioning Accuracy	±0.05mm/m
Cutting Speed	11000mm/min	Certificate	CE ISO
Motor	30kw / 40HP	After-sales Service	Installation Online Service
MAX.Cutting Range	3000mmx1800mmx200mm	Material	Stainless steel

Cutting With Win-Win's Abrasive Garnet

Waterjet abrasive garnet is widely used in abrasive waterjet cutting machines. The abrasive garnet by WIN-WIN is high-end which can increase the cutting speed. And in the same time, it can cut thick materials by using 80 mesh garnet. The abrasive garnet is added in the application of water jet, the section is smooth, the accuracy is also improved, and there is no limit on the thickness of the plate.
