KMT Cutting Head Parts

The diamond orifice cannot be worn for a long time, to ensure that the aperture has the smallest change in the case of long-term use, the perfect aperture is maintained, the cutting gap is guaranteed, the cutting speed and efficiency are guaranteed, and there is no water separation caused by the deformation of the aperture.

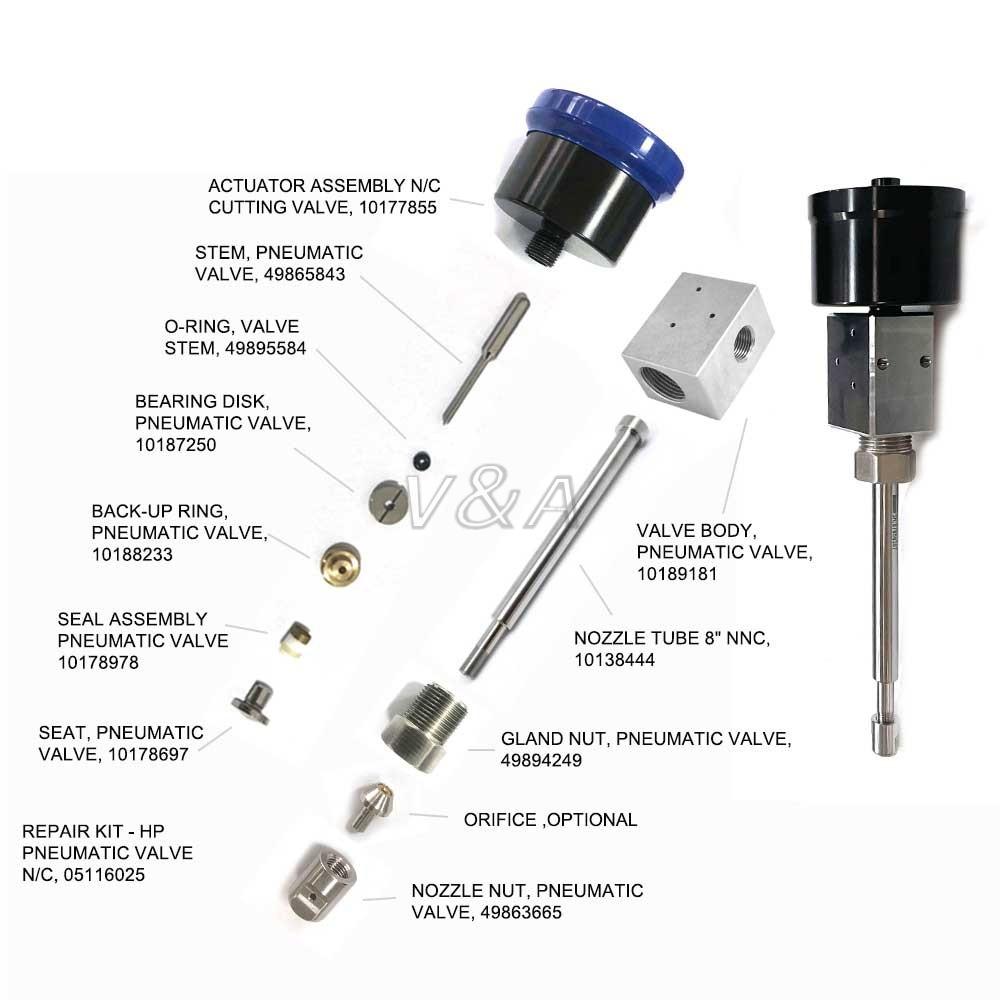

Item

Part Number

Description

1

10177855

ACTUATOR ASSEMBLY N/C CUTTING VALVE

2

49865843

STEM, PNEUMATIC VALVE

3

49895584

O-RING, VALVE STEM

4

10187250

BEARING DISK, PNEUMATIC VALVE

5

10188233

BACK-UP RING, PNEUMATIC VALVE

7

10178978

SEAL ASSEMBLY   PNEUMATIC VALVE

8

10178697

SEAT, PNEUMATIC VALVE

9

05116025

REPAIR KIT - HP PNEUMATIC VALVE N/C

10

10189181

VALVE BODY, PNEUMATIC VALVE

11

10138444

NOZZLE TUBE 8" NNC

12

49894249

GLAND NUT, PNEUMATIC VALVE

13


ORIFICE ,OPTIONAL

14

49863665

NOZZLE NUT, PNEUMATIC VALVE

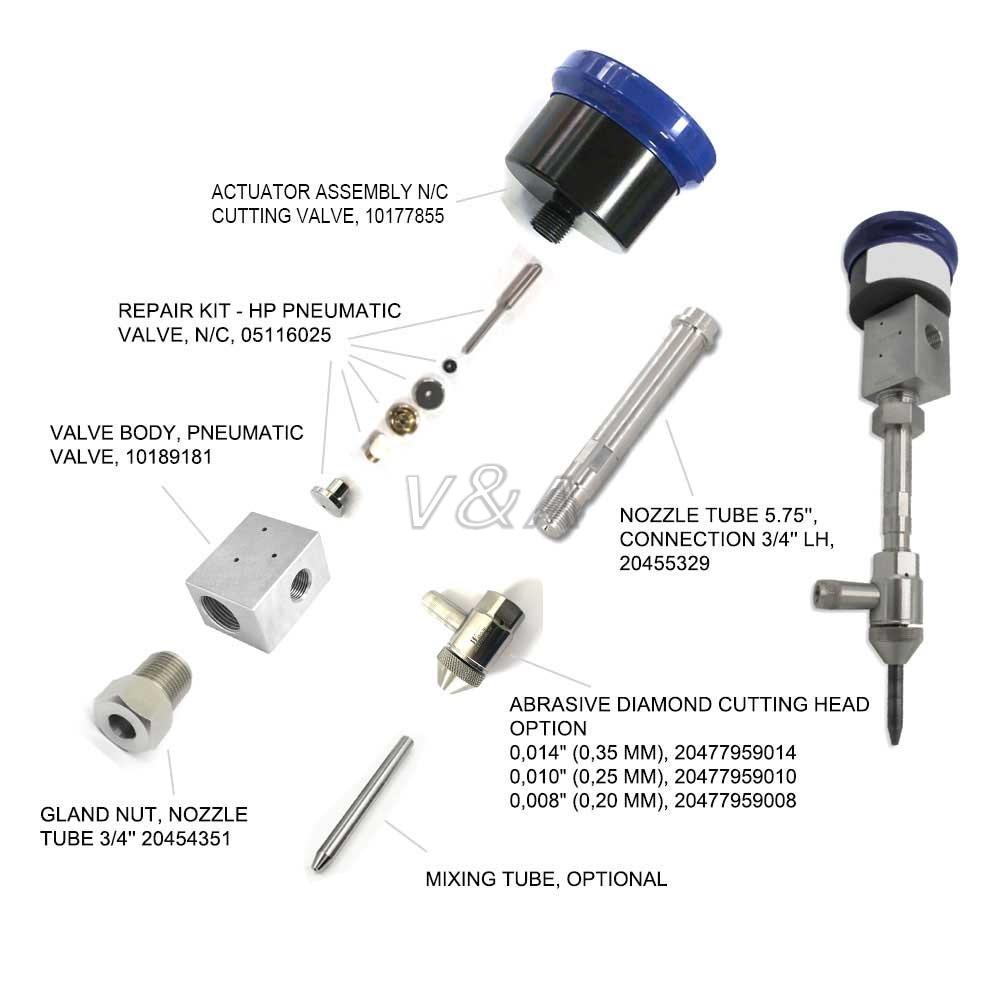

Item

Part Number

Description

1

10177855

ACTUATOR ASSEMBLY N/C CUTTING VALVE

2

49865843

STEM, PNEUMATIC VALVE

3

49895584

O-RING, VALVE STEM

4

10187250

BEARING DISK, PNEUMATIC VALVE

5

10188233

BACK-UP RING, PNEUMATIC VALVE

7

10178978

SEAL ASSEMBLY   PNEUMATIC VALVE

8

10178697

SEAT, PNEUMATIC VALVE

9

05116025

REPAIR KIT - HP PNEUMATIC VALVE N/C

10

10189181

VALVE BODY, PNEUMATIC VALVE

11

20455329

NOZZLE TUBE 5.75'', CONNECTION 3/4'' LH

12

49894249

GLAND NUT, PNEUMATIC VALVE

13


ABRASIVE DIAMOND CUTTING HEAD OPTION

14


MIXING TUBE, OPTIONAL
