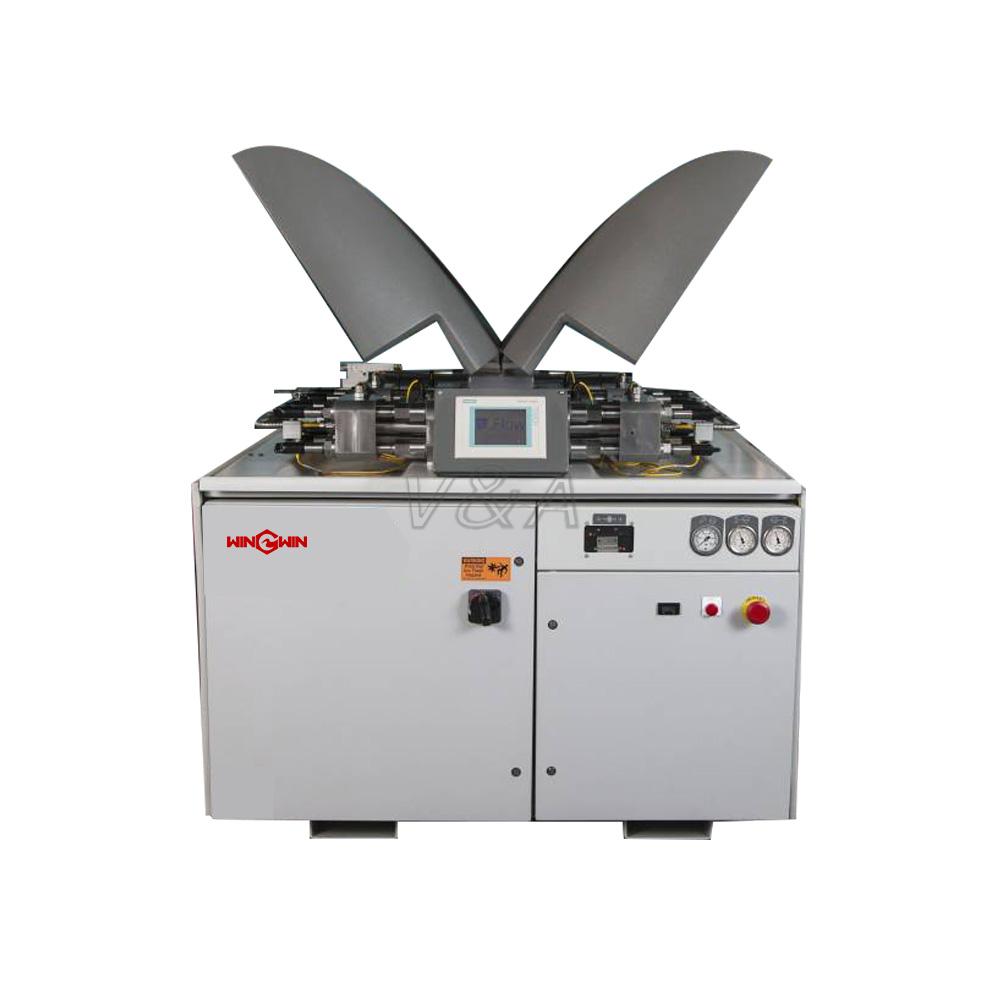

87k Pump Parts

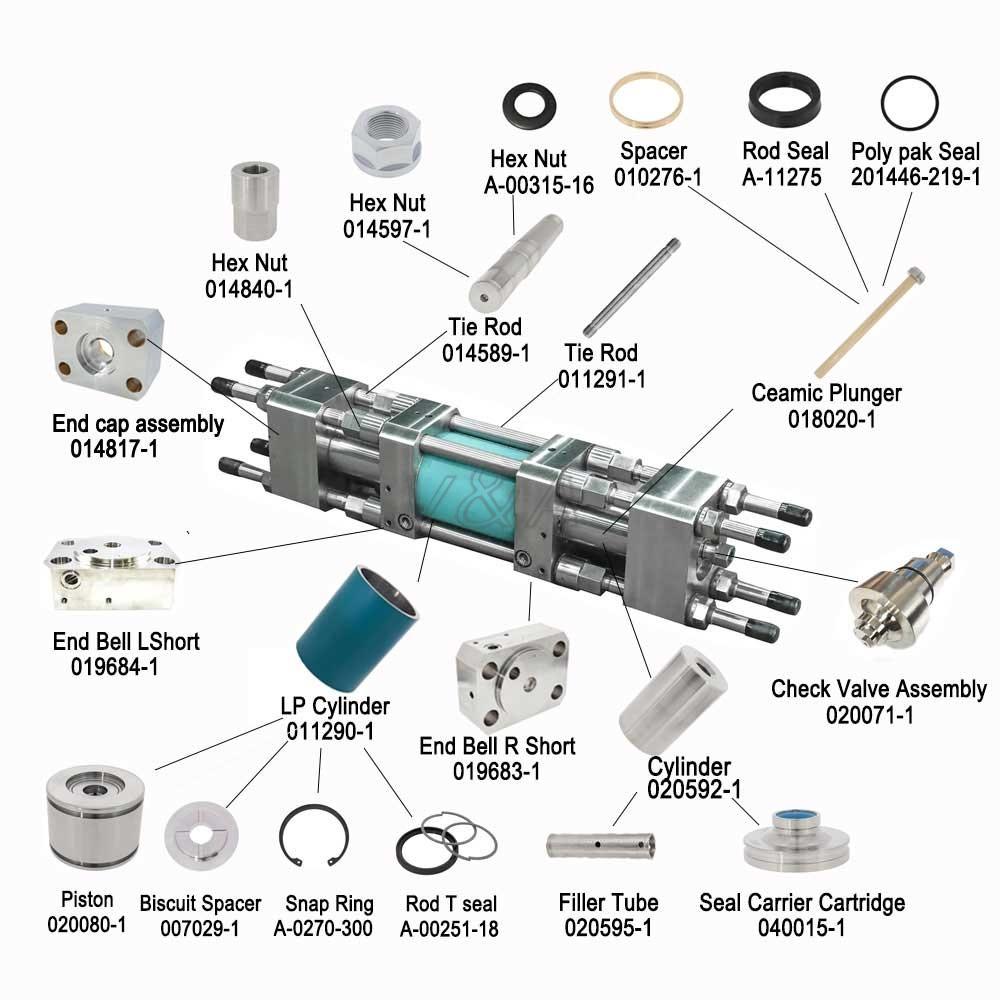

FLOW 87k Waterjet Parts



Item

Part Number

Description

Item

Part Number

Description

1

011291-1  014623-1

020078-1

020070-1

Low pressure tie rod



17

020595-1

Filter tube

2

A-11275



Rod seal

18

A-00315-16

Washer

3

010276-1

Spacer

19

014597-1

Tie rod nut

4

A-0264-112

Snap ring

20

010011-1

014884-1

015384

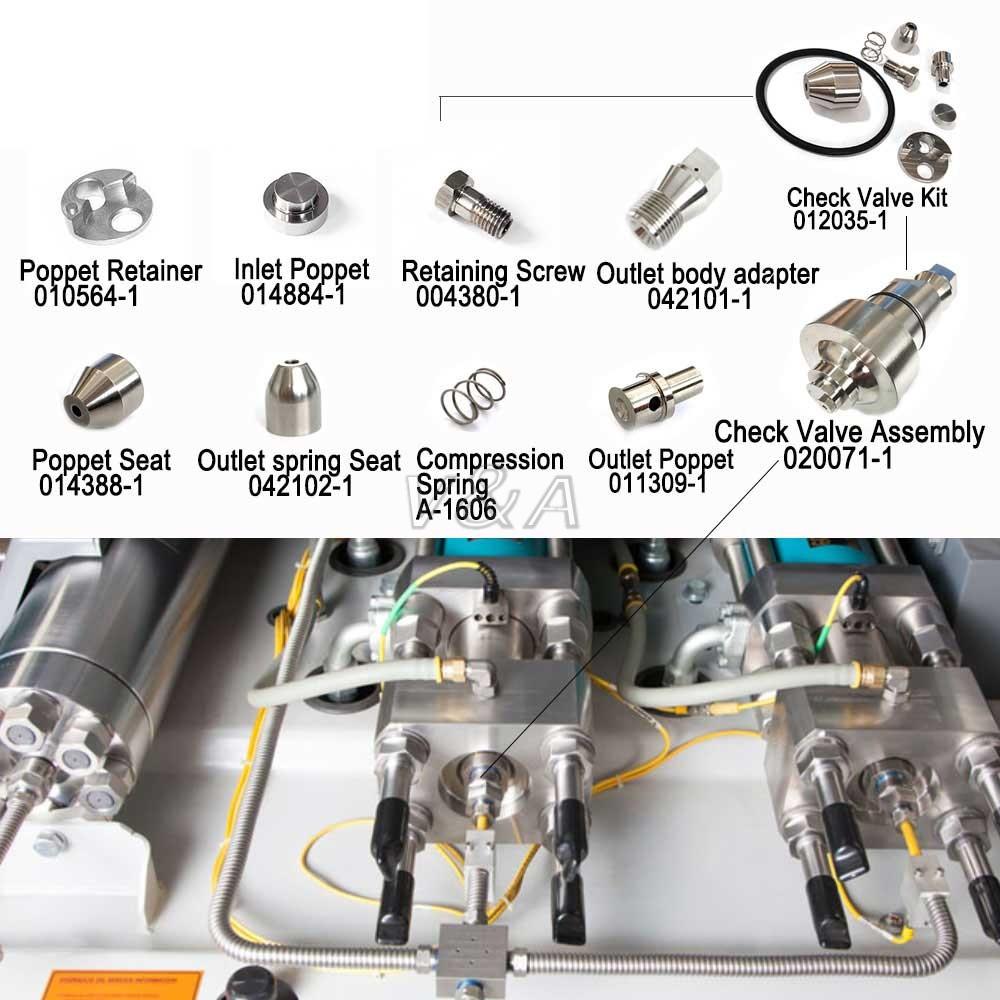

Inlet poppet

5

201446-219-1

Poly-pak seal

21

014840-1

Tie rod nut

6

011304-1

014623-1

020080-1

020070-1

Piston biscuit

22

011309-1

Outlet seat

7

A-00251-18

Rod T-seal

23

011516-1

042102-1



Spring seat



8

007029-1

Biscuit spacer

24

014589-1

High pressure tie rod

9

A-0270-300

Snap ring

25

014817-1



End cap

10

010253-1

Plunger assembly

26

004380-1

Retainer screw

11

011290-1

014623-1

019975-1

020070-1

Low pressure cylinder

27

010564-1

Support assembly

12

A-0275-248

O-ring

28

020077

Check valve body

13

A-00437-248

O-ring

29

A-0275-131

O-Ring

14

019683-1(right)

019684-1(left)

020074-1(right)

020072-1(left)

End bell

30

014388-1

Seat

15

040015-1

Seal cartridge

31

A1606

Compression spring

16

020592-1

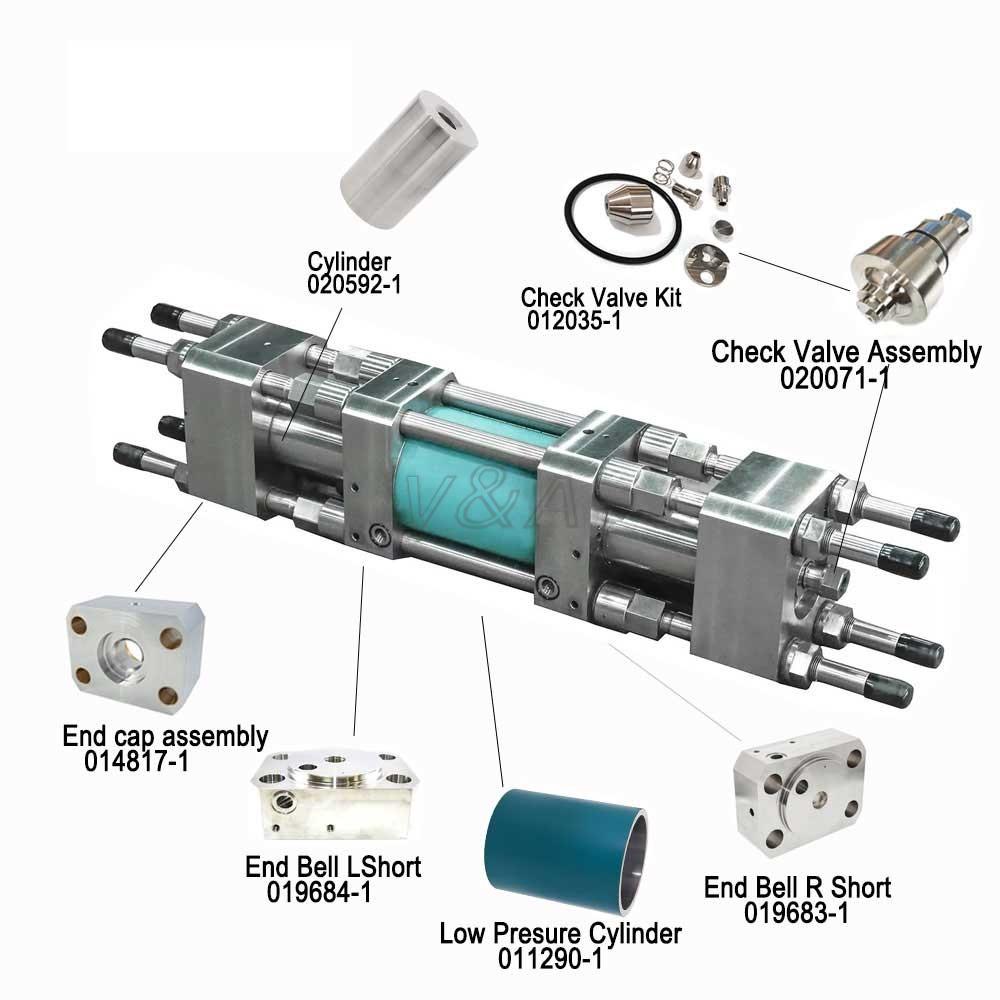

High pressure cylinder

32

014389-1

C1313-1

042101-1

Adapter
