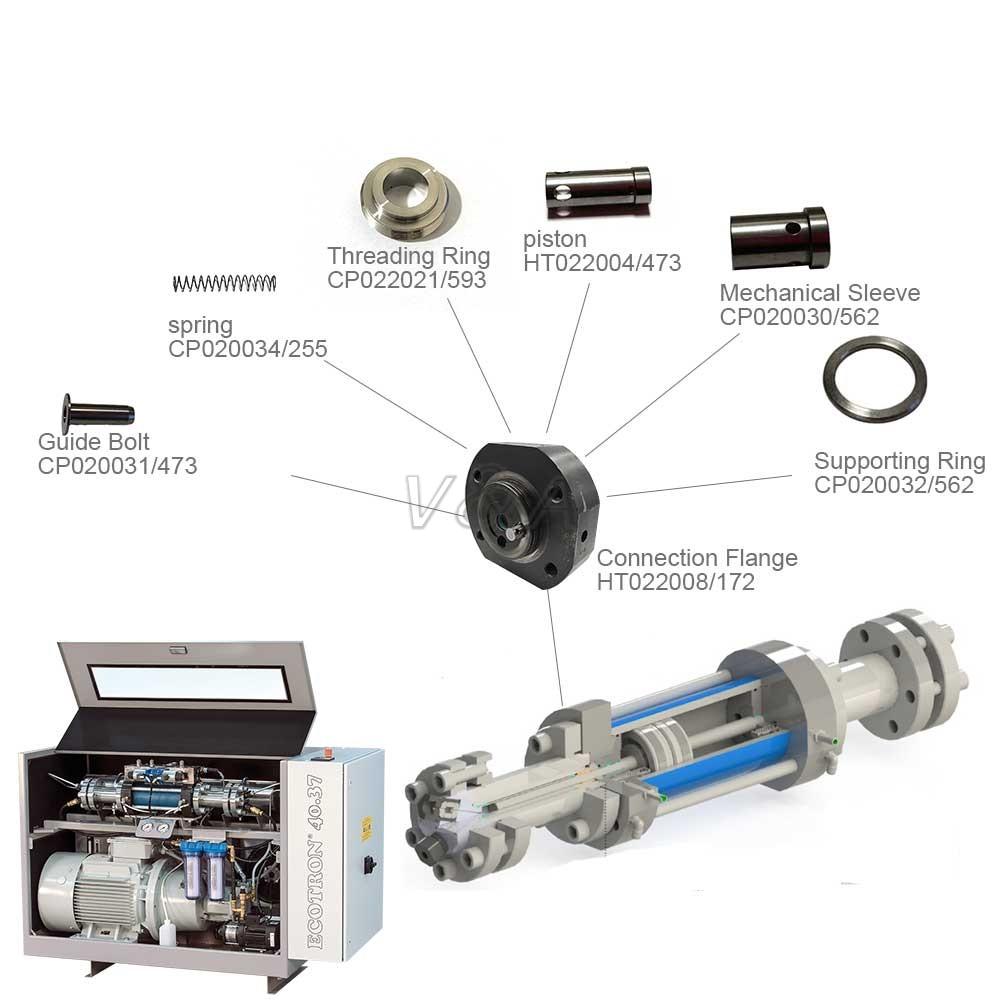

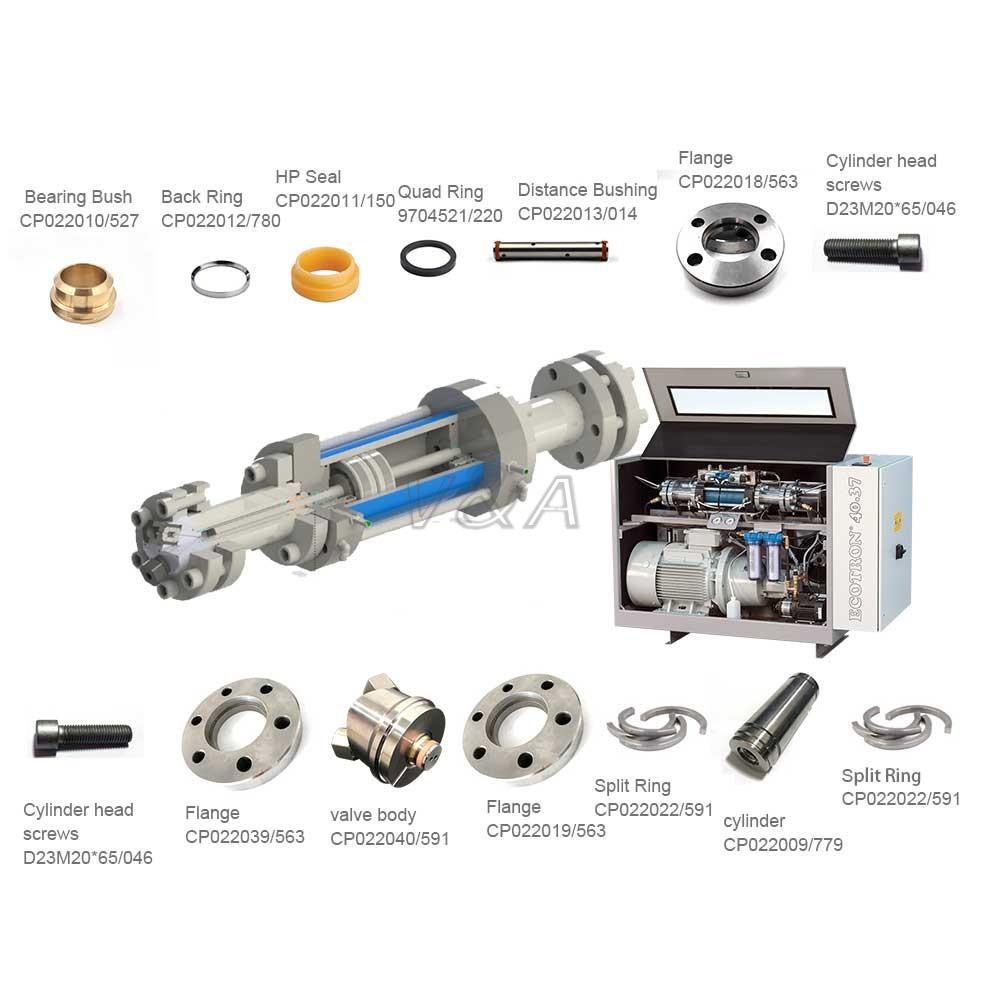

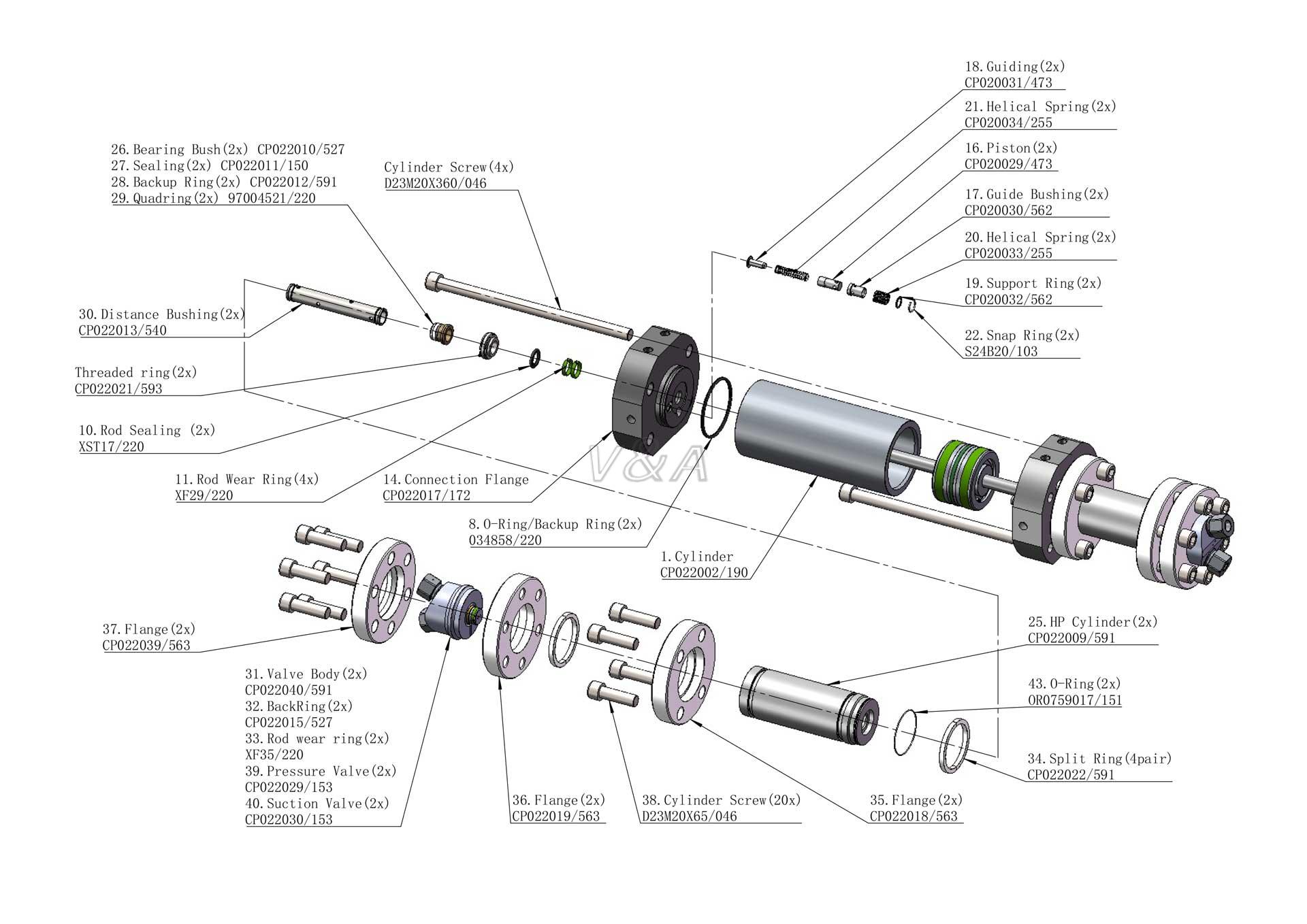

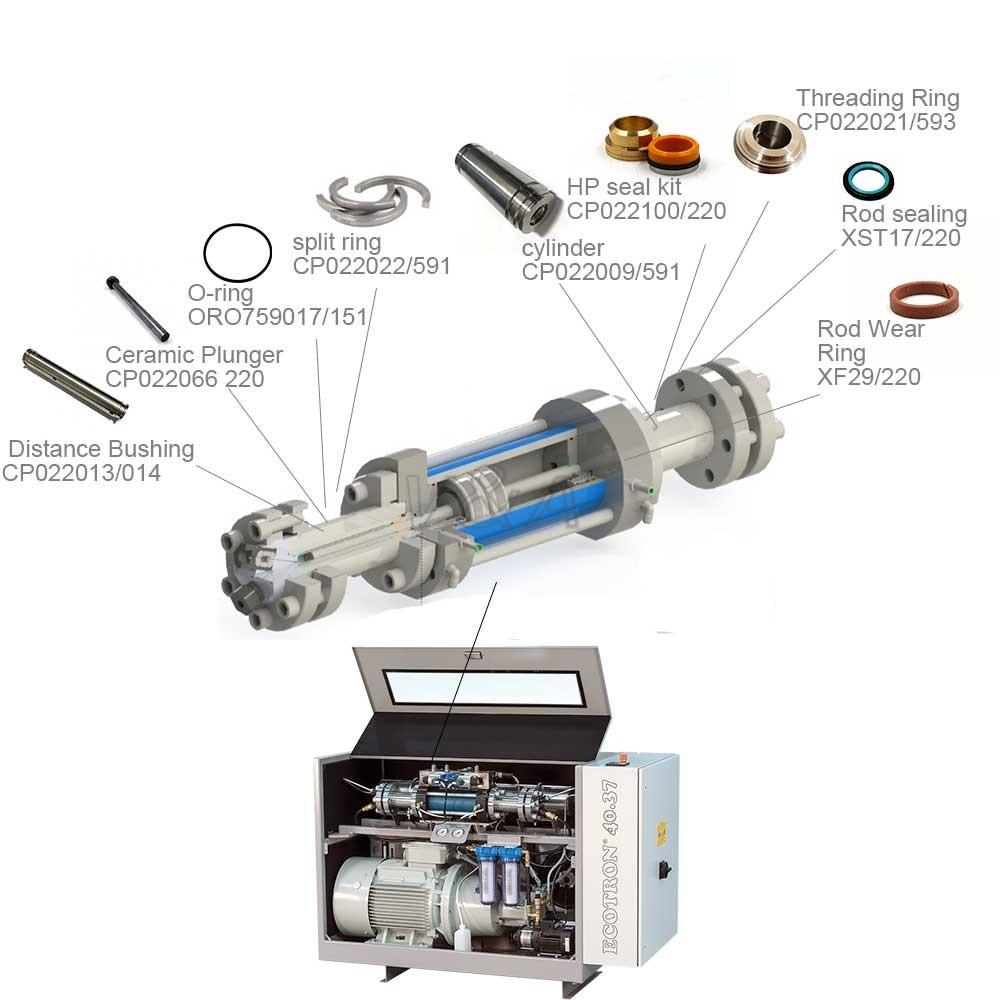

BFT Pump Parts
Item | Part Number | Description |
1 | CP022002/190 | cylinder |
8 | 034858/220 | o-ring backring 97 |
10 | XST17/220 | rod sealing |
11 | XF29/220 | rod wear ring |
14 | CP022017/172 | connection flange |
16 | CP020029/473 | Piston |
17 | CP020030/562 | Guide bushing |
18 | CP020031/473 | guide bolt |
19 | CP020032/562 | supporting ring |
20 | CP020033/255 | helical spring |
21 | CP020034/255 | helical spring |
22 | S24B20/103 | snap ring |
25 | CP022009/779 | high pressure cylinder |
26 | CP022010/527 | bearing bush |
27 | CP022011/150 | Sealing |
28 | CP022012/780 | Back ring |
29 | CP022040/591 | quadring |
30 | CP022013/014 | distance bushing |
31 | CP022040/591 | Valve body |
32 | CP022015/527 | back ring |
33 | XF35/220 | rod wear ring |
34 | CP022022/591 | split ring |
35 | CP022018/563 | flange |
36 | CP022019/563 | flange |
37 | CP022039/563 | flange |
38 | D23M20x65/046 | cylinder head screw |
39 | CP022047/844 | pressure valve |
40 | CP022109/844 | suction valve |
