Waterjet 60K Pump Parts

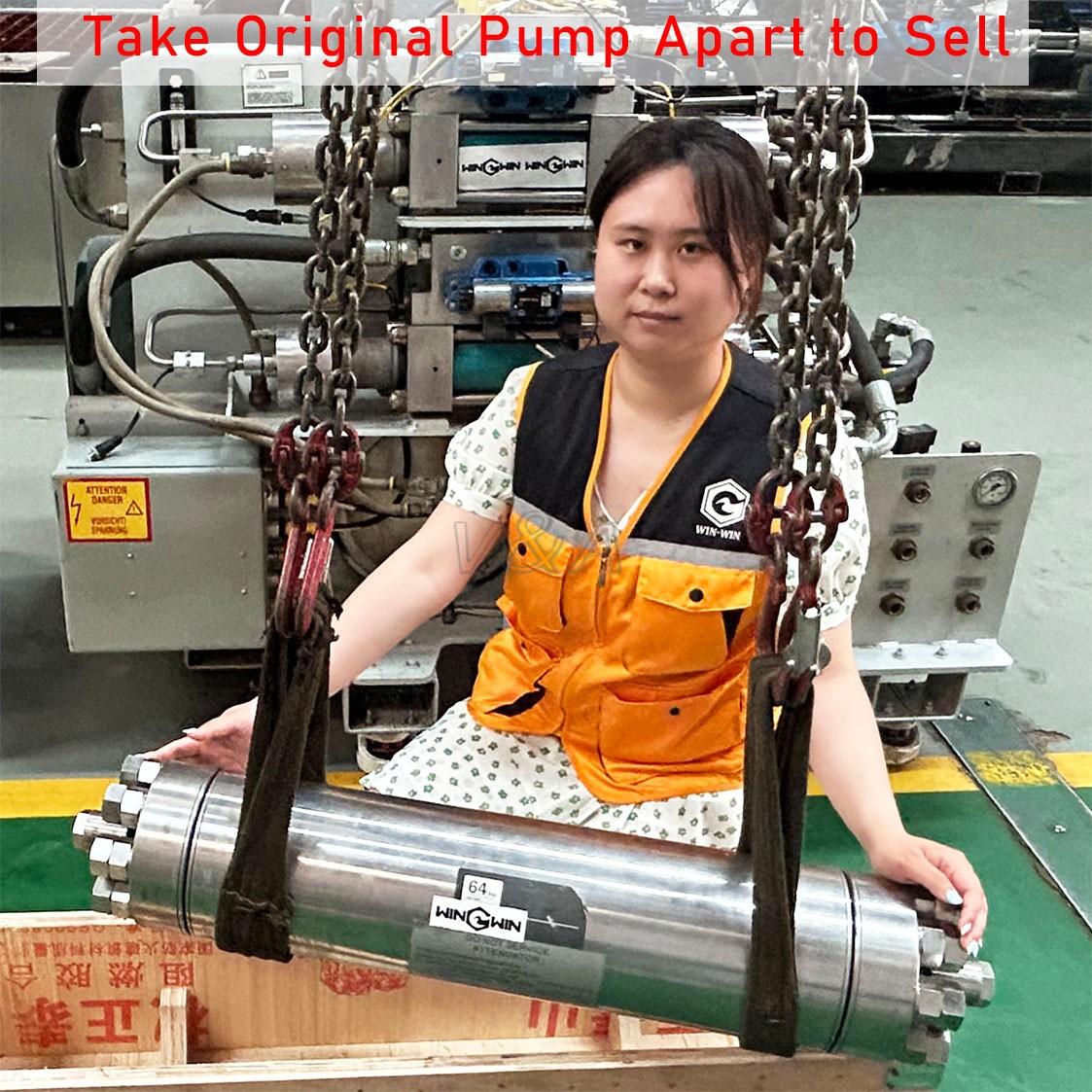

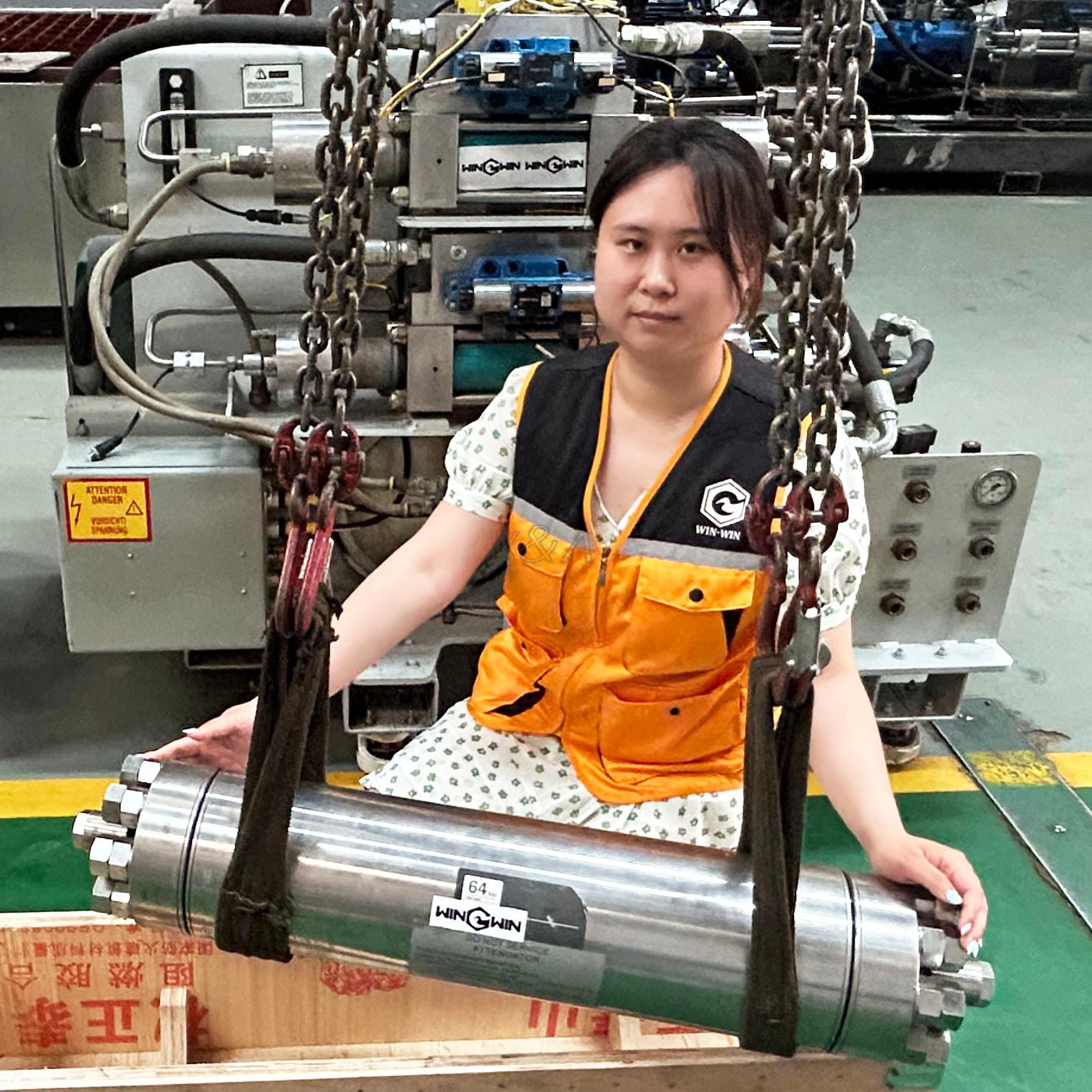

Take original pump apart to sell
We take original pump apart to sell genuine parts
Item | Part Number | Description | Item | Part Number | Description |
1 | B-1000-2 | Tie rod | 17 | B-1465-1 | Seal ring |
2 | A-00250-240 | Backup ring | 18 | B-1002-2 | Seal backup sleeve |
3 | A-0275-240 | O-ring | 19 | 004380-1 | Retaining screw |
4 | A-11275
| Oil seal | 20 | 010564-1
| Inlet check valve support |
5 | 010276-1 | Spacer | 21 | 010011-1 | Inlet poppet |
6 | A-0264-112 | Snap ring | 22 | 004383-3 | Check valve body |
7 | C-1000-1 | Low pressure cylinder | 23 | A-0275-125 | O-ring |
8 | 010561-1 | Piston assembly | 24 | 004382-1 | Insert |
9 | 007026-1 | Piston biscuit | 25 | 321276 | End cap |
10 | 007029-1 | Biscuit spacer | 26 | 005917-1 | Outlet poppet |
11 | 010253-1 | Ceramic plunger | 27 | A-1606 | Compression spring |
12 | A-0270-300 | Snap ring | 28 | C-1313-1 | Outlet body |
13 | A-00251-18 | T-seal | |||
14 | 007303-2(left) 007303-1(right) | End bell | |||
15 | 007038-3
| High pressure cylinder | |||
16 | 010559-X | Check valve assembly |
