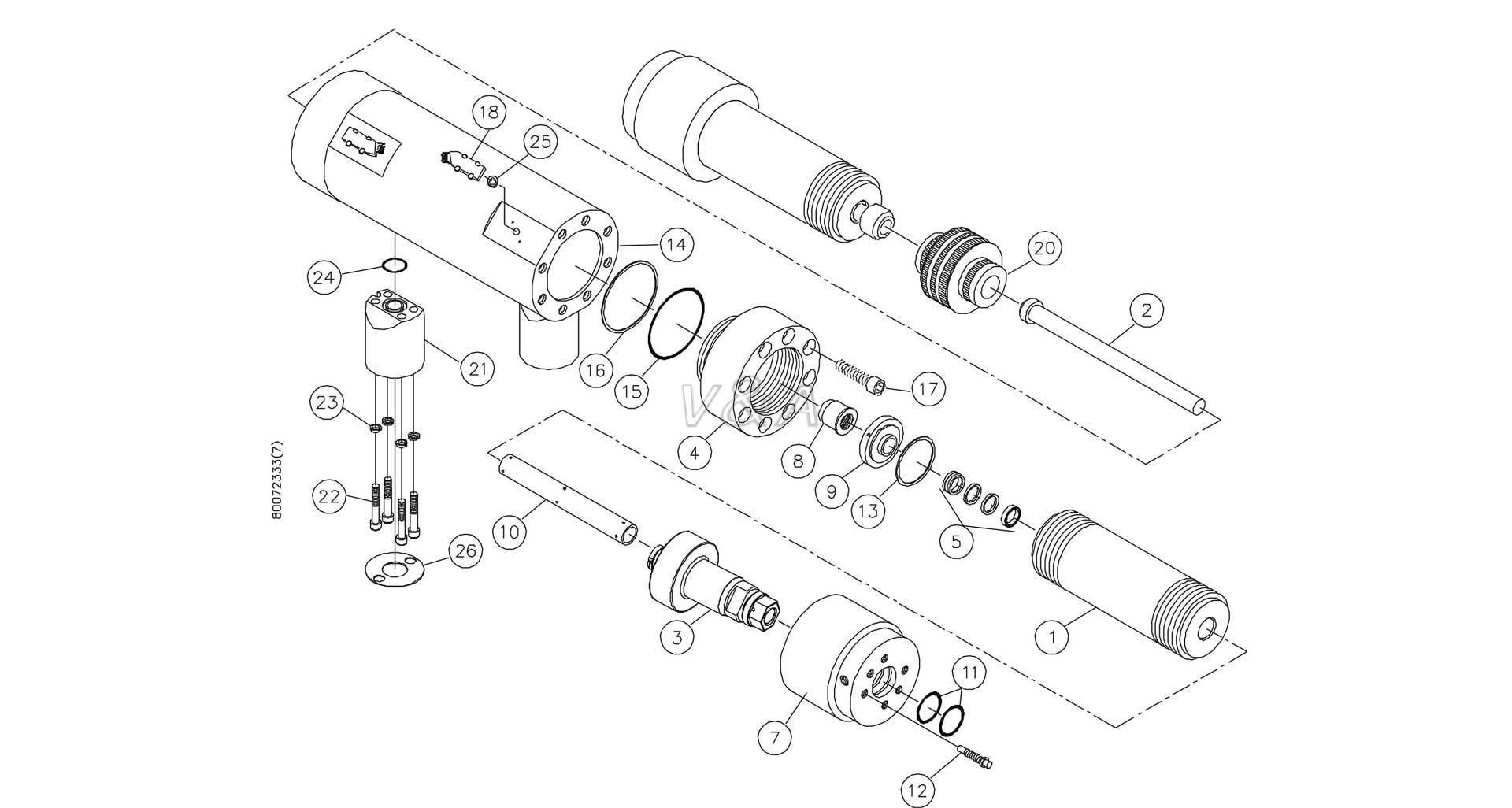

50HP Pump Parts

50HP Pump Parts



Item

Part Number

Description

Item

Part Number

Description

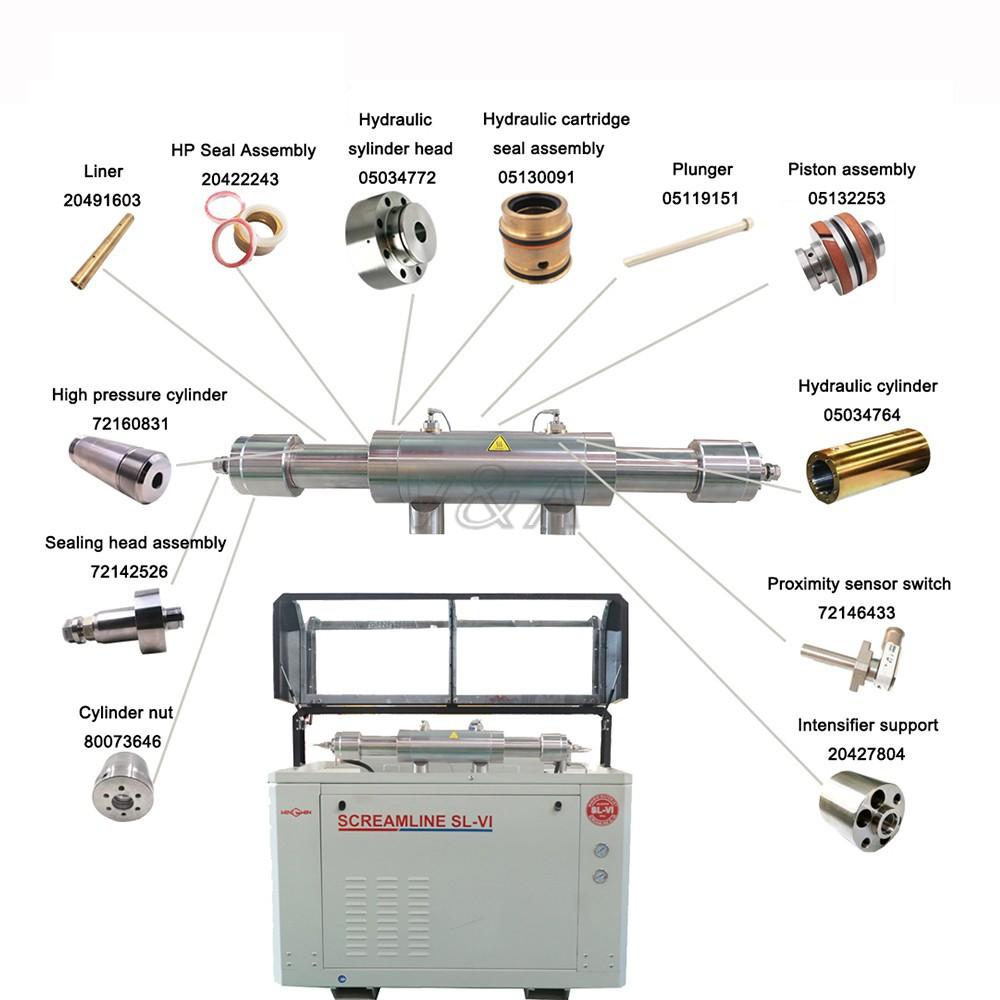

1

72160831

High Pressure Cylinder

14

05034764



Hydraulic Cylinder



2

05119151

Plunger



15

10075000



O-Ring, 3.75 x 4.0 x .13

3

72142526

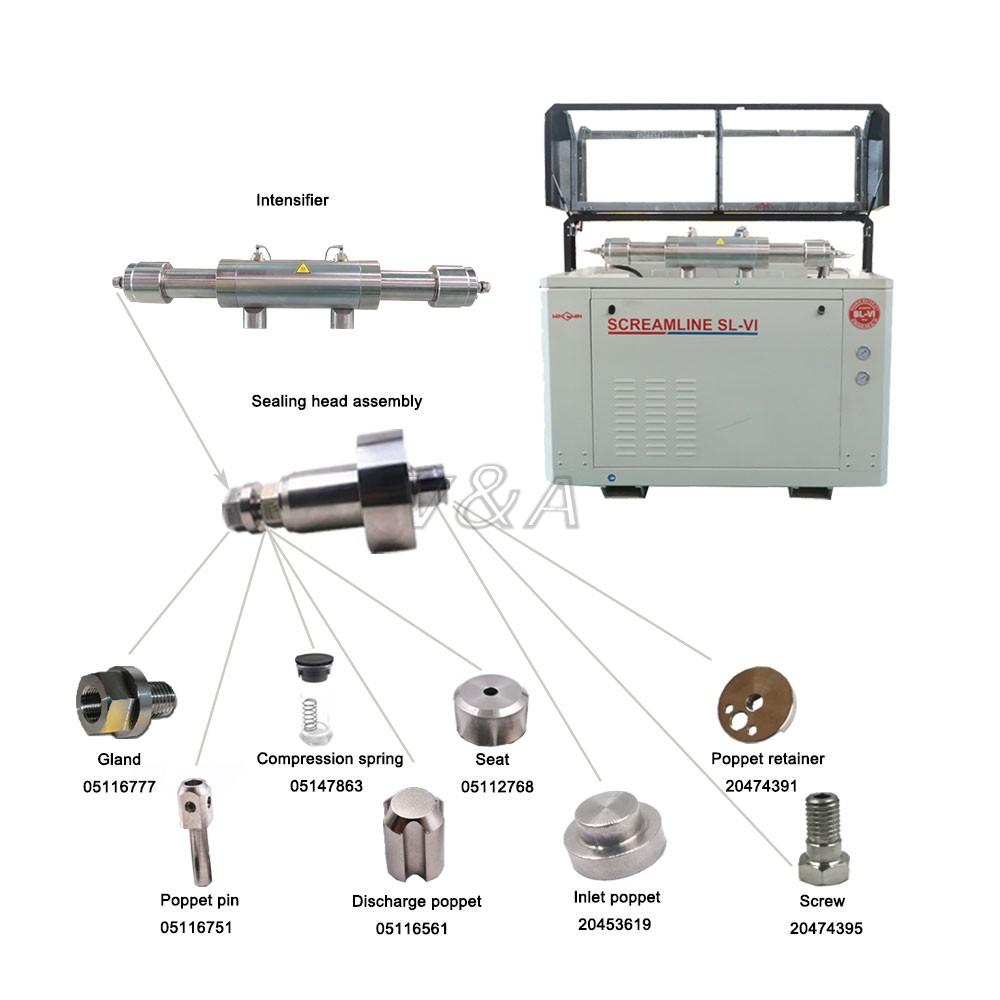

Sealing Head Assembly

16

05034855



Backup Ring, 3.75 x 4.0

4

05034772



Hydraulic Cylinder Head

17

05141106



Socket Head Screw, M14 x 60MM

5

20422243



HP Seal Assembly



18

72146433

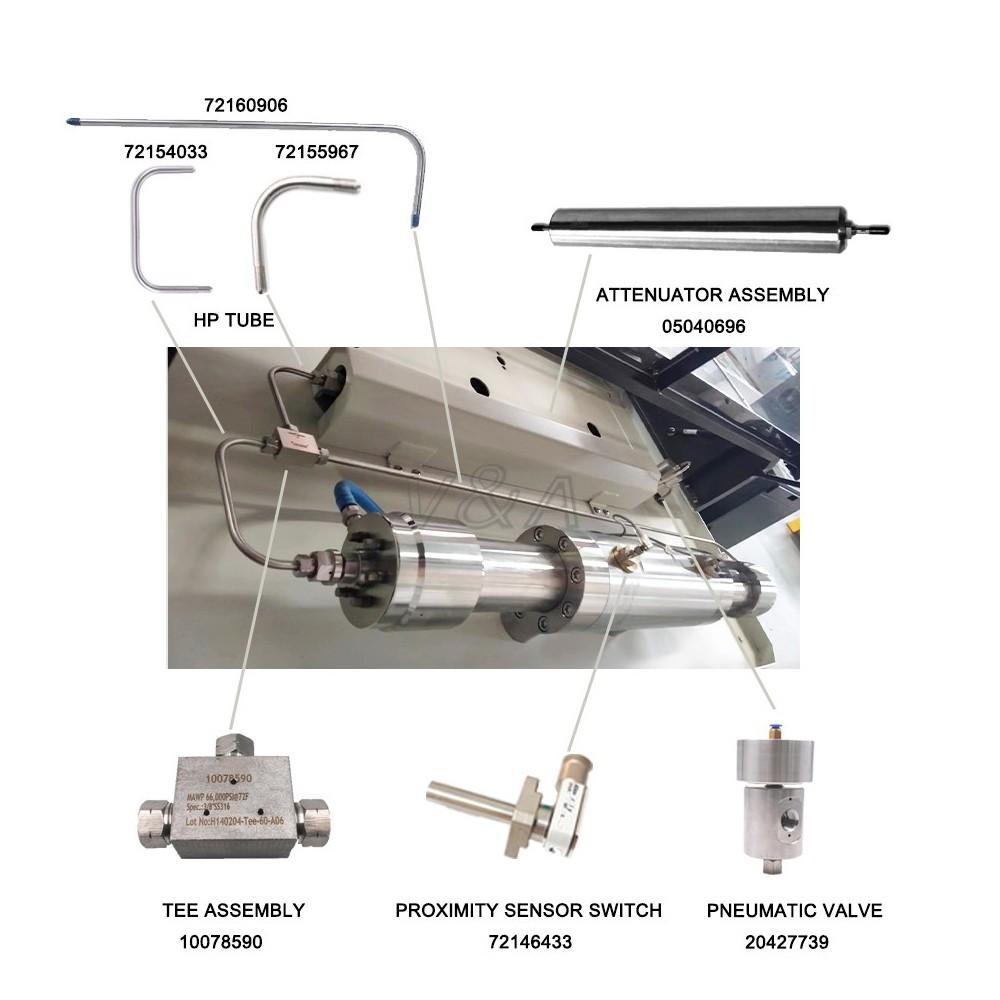

Proximity Switch Kit



7

80073646



Cylinder Nut



20

05132253

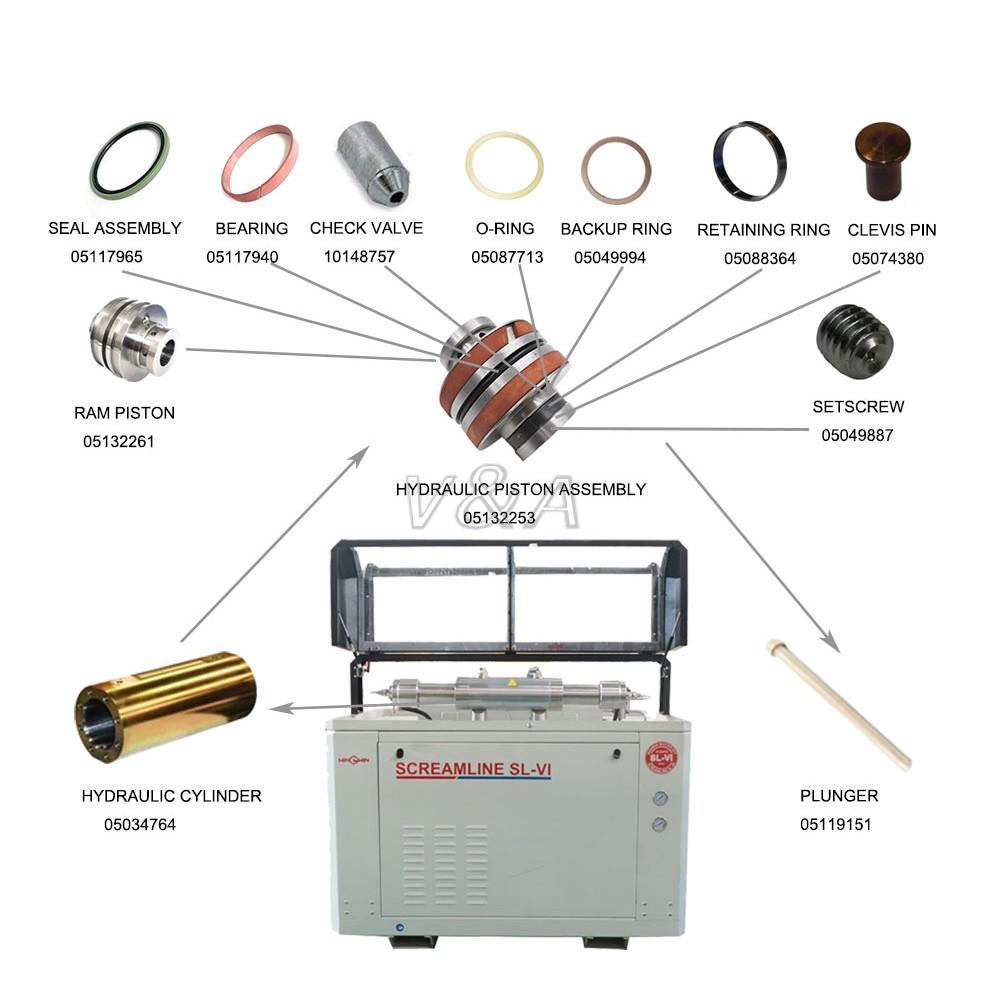

Piston Assembly



8

05130091



Hydraulic Seal Cartridge Assembly

21

20427804



Intensifier Support



9

05007786



Bushing Retainer Flange

22

20427994



Socket Head Screw, M10 x 1.50 x 65MM

10

20497767



Liner, HP Cylinder

23

05061486



Lock Washer, M10



11

10074920



O-Ring, 1.75 x1 .94 x .09

24

10074409



O-Ring, 1.0 x 1.25 x .13

12

80070352



Jackbolt



25

05144183



Spacer Assembly, Proximity Switch

13

05034798



Retaining Ring



26

05081872



Gasket, Topworks Support
